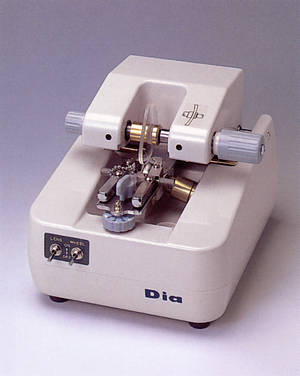

AG-5 AUTO GROOVER
DISCONTINUED

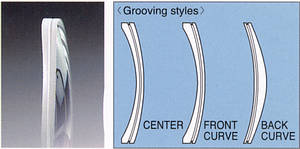

Three grooving styles - • center, • front curve and • back curve grooves - are available.
Depth and location of the groove are adjustable simply and precisely.
A high quality mond cutter wheel grooves both mineral grass and plastic lenses.
| Width of Groove | 0.6mm(0.7mm or 1.2mm with extra wheel) |
|---|---|
| Max. Depth of Groove | 0.7mm |
| Tickness / meter of Lens Acceptable | 1.5mm-11.0mm/28mm-70mm(25mm with extra chucks) |
| Dimensione | 170(W)x210(D)x150(H)mm |
| Weight | 2.7kg |
| Power Requirements | 100-120V/60Hz AC or 200-240V/50Hz AC, 57W |
